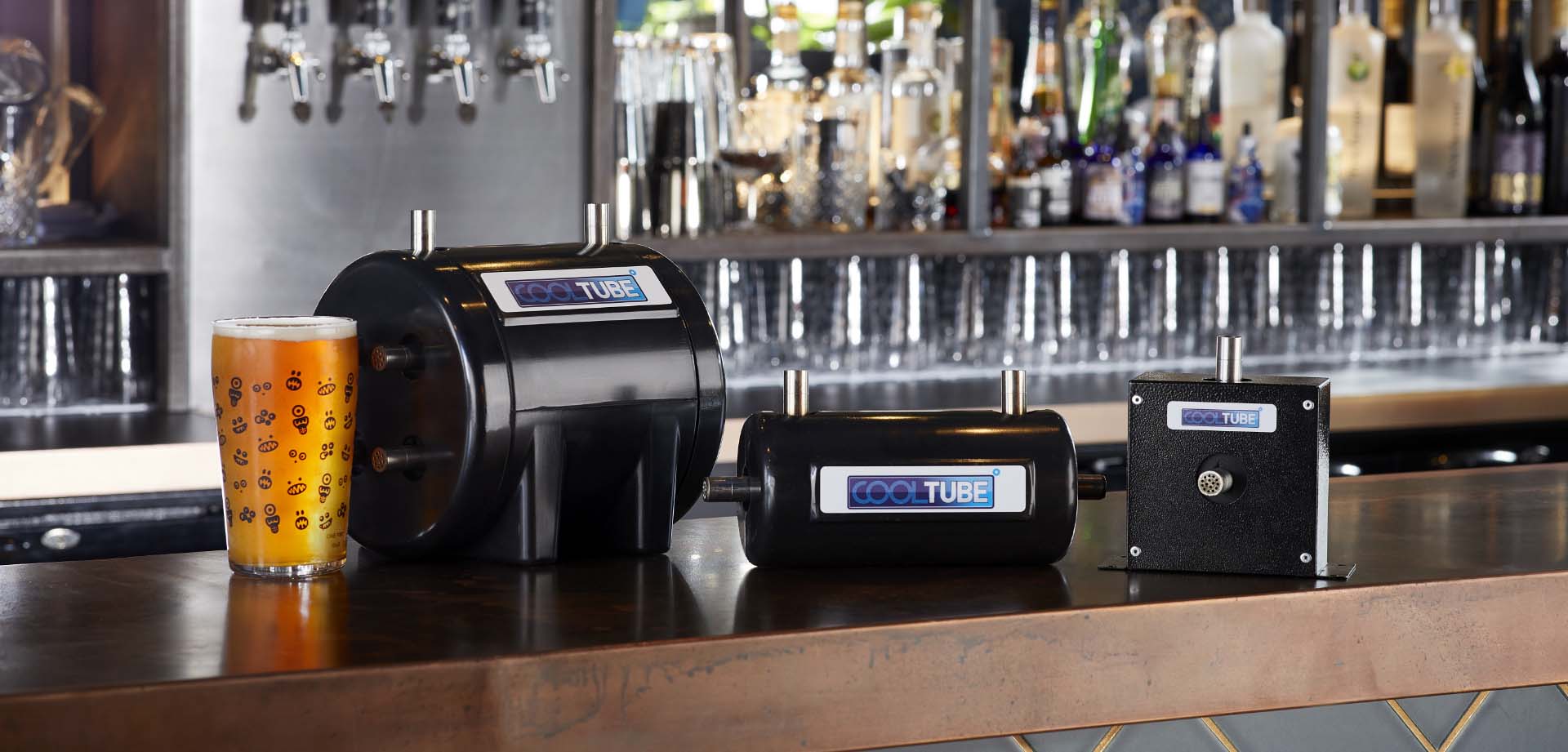

introducing cooltube

variable temperatures
at the point of dispense

The world’s smallest & smartest heat exchange solution for drinks dispense.

CoolTube is an amazingly efficient compact heat exchanger that provides superior heat exchange capabilities and also allows variable dispense temperatures at the point of dispense.

how it works

The CoolTube is constructed from stainless steel throughout and is over six times smaller and lighter than a standard remote cooling pod and has a superior delta T in comparison to competitive products.

The product is so compact and lightweight that it doesn’t require fixings, therefore can fit in most confined spaces including directly under the font, saving valuable space behind the bar.

Installation & Compatibility

CoolTube is easy to install and delivers outstanding results so as a time and space saving device it’s second to none. The product is compatible with all standard industry push in fittings and comes in two standard sizes. Brewfitt is happy to manufacture bespoke, made to measure CoolTubes as required. The technology can also be adapted into the dispense font/tower. All stainless steel components are made from high quality grade 316.
enquire about cooltube

Superior Temperatures

Dispensed drinks temperatures can be within 1(°C) to 2(°C) of the python recirculation temperature. There is very little variation in dispensed temperatures whether or not a half pint is poured or the tap is constantly opened. This is due to the low volume actually within the CoolTube and its unique heat exchange technology.

Efficiency

It has over 4 times more cooling surface area per ml of product than a standard pod and holds less than 80% of the amount of coolant. For example, the surface area cooling of the beer coils in the CoolTube is 24cm2 per ml of beer. This compares to other heat exchanger products which have less than 6cm2 per ml of beer surface area cooling.
enquire about cooltube

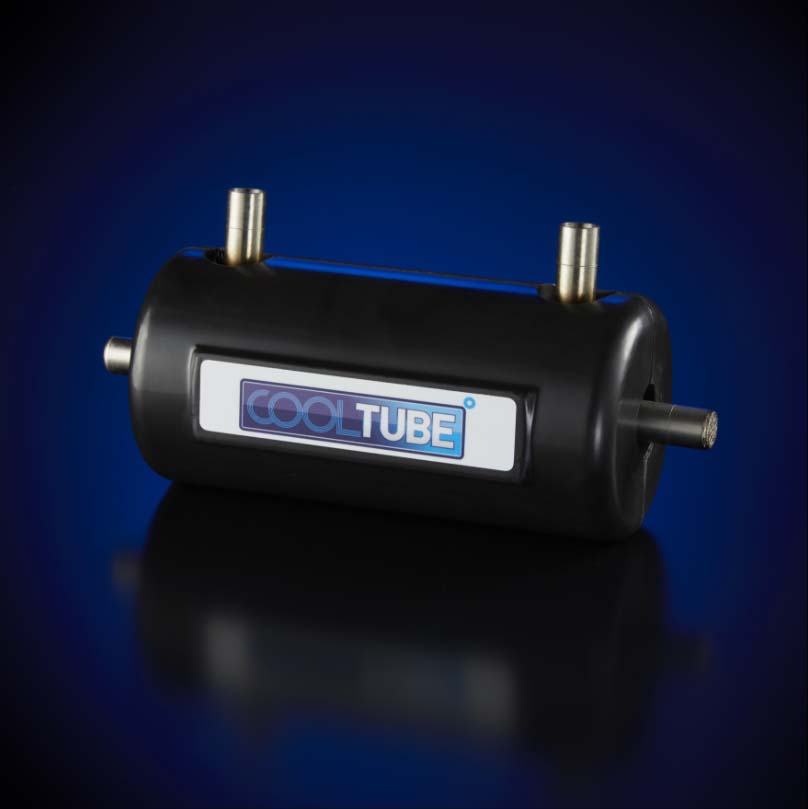

cooltube 1 out

shop

cooltube 4 out

shop
  • key benefits
    Over 6 times smaller and lighter than standard heat exchangers.
  • key benefits
    Consistent dispensed temperatures due to the low volume of product within the CoolTube and its unique heat exchange technology.
  • key benefits
    Scope to include the technology inside the point of dispense.
  • key benefits
    Has the equivalent of 18 meters of product coil but only holds 40ml of beverage.
  • key benefits
    So compact and lightweight that it doesn’t need fixing into position.
  • key benefits
    Has a superior Delta T in comparison to other products.
  • key benefits
    Dispensed drinks temperatures can be within 1C to 2C of the python recirculation temperature.
  • key benefits
    Provides unique recarbonation properties.
"The level of service from Brewfitt is beyond any other install company. We chose Future of Dispense because of the freedom of choice over a traditional system. The system is a lot more efficient as its cooled at the point of service, I would recommend FOD- Future of dispense for its key benefits such as less wastage, system reliability and overall cost savings."
Robbie Mills
Head of bar operations - Freight Island
