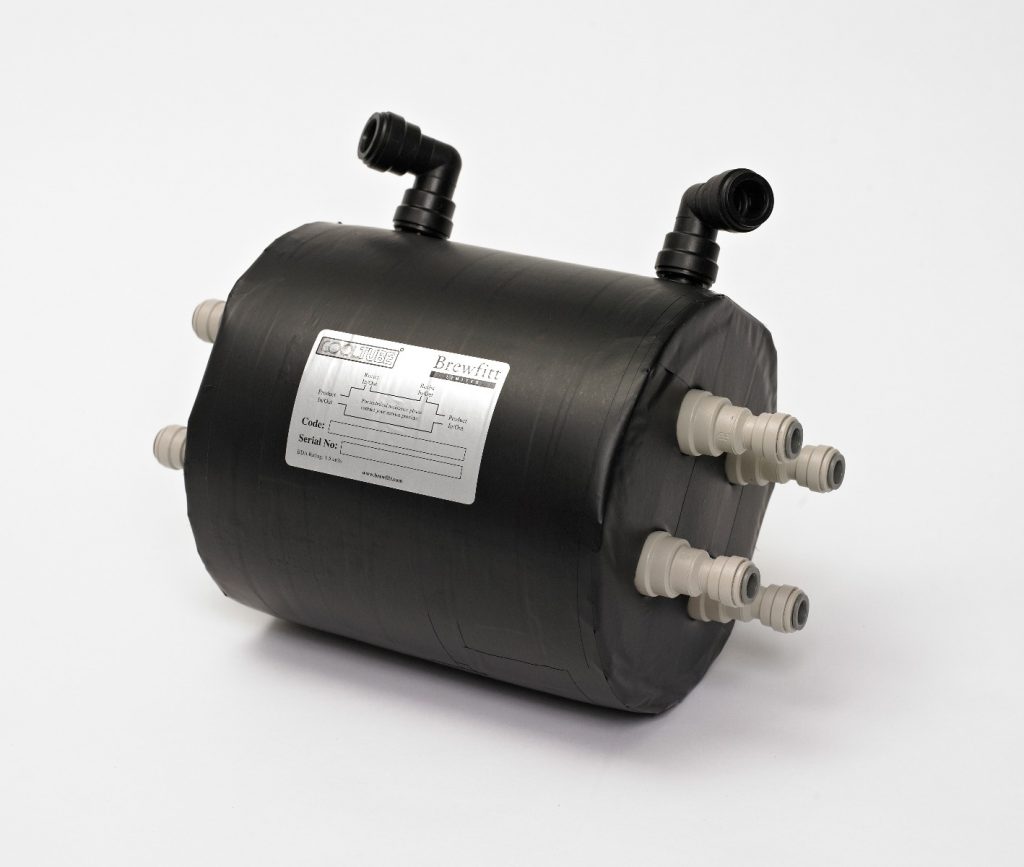

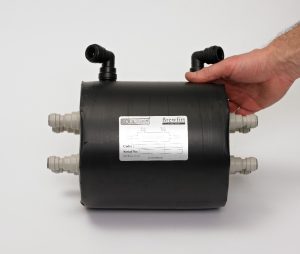

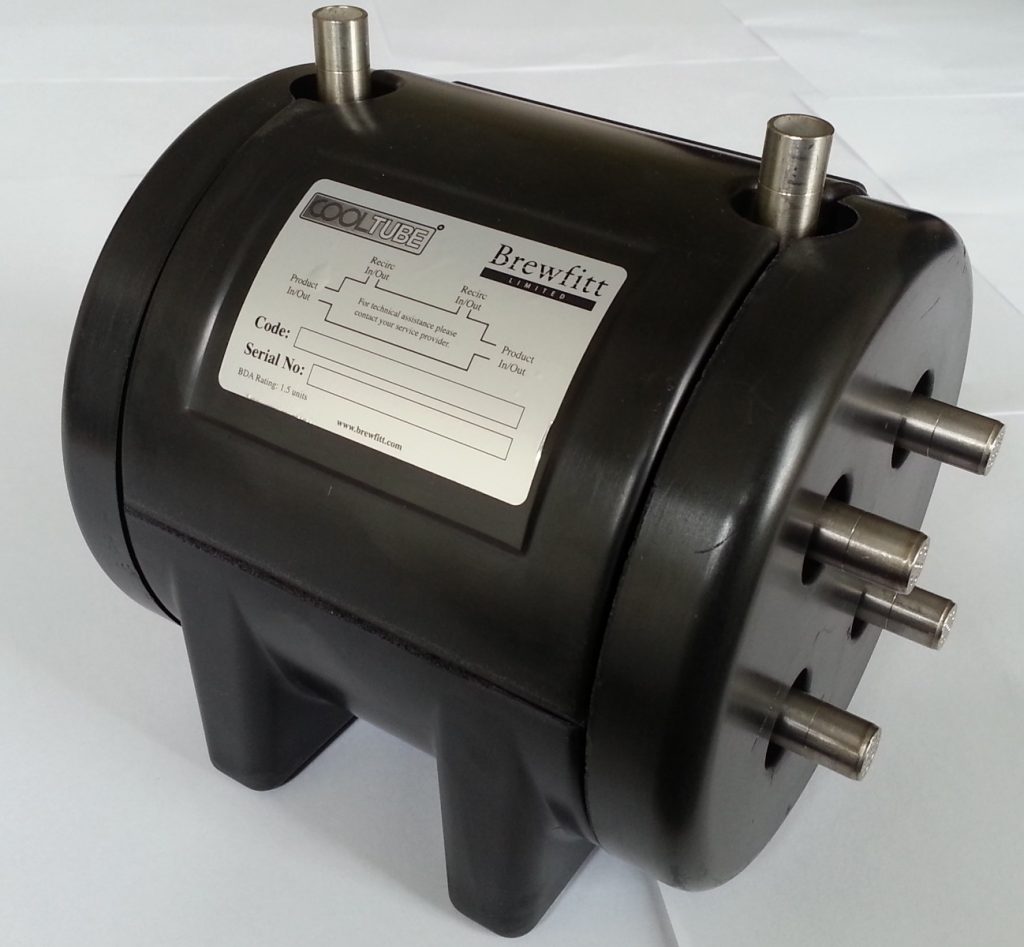

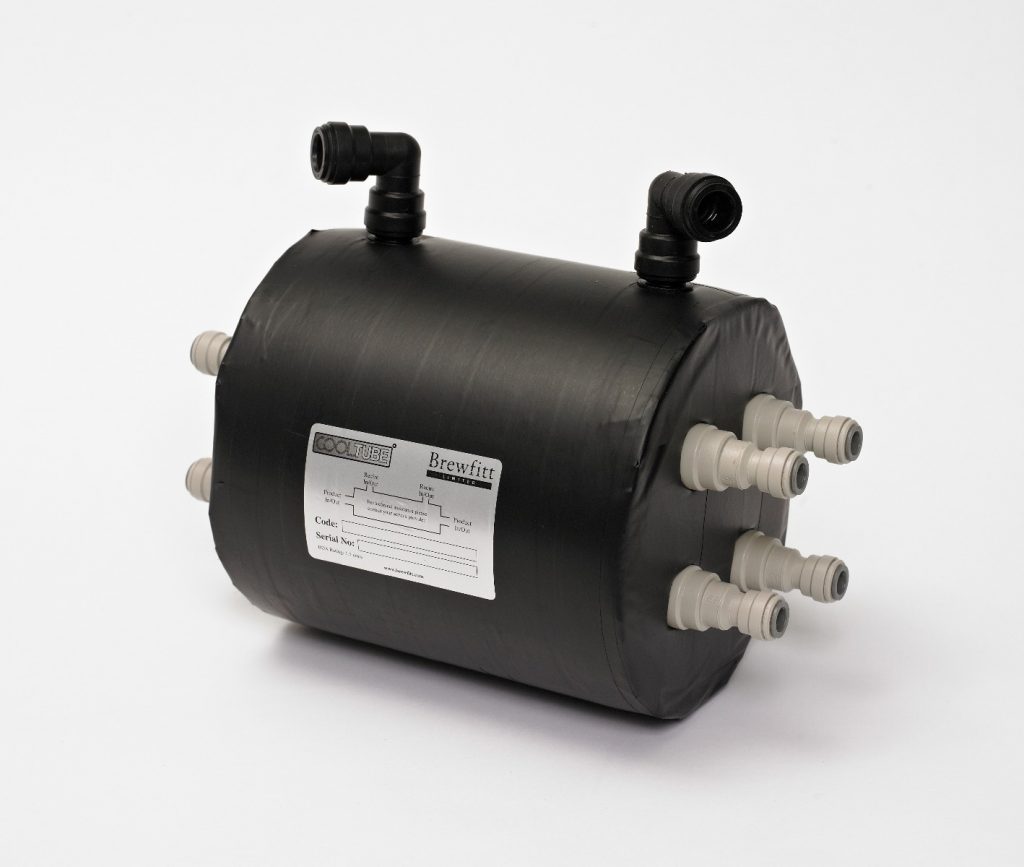

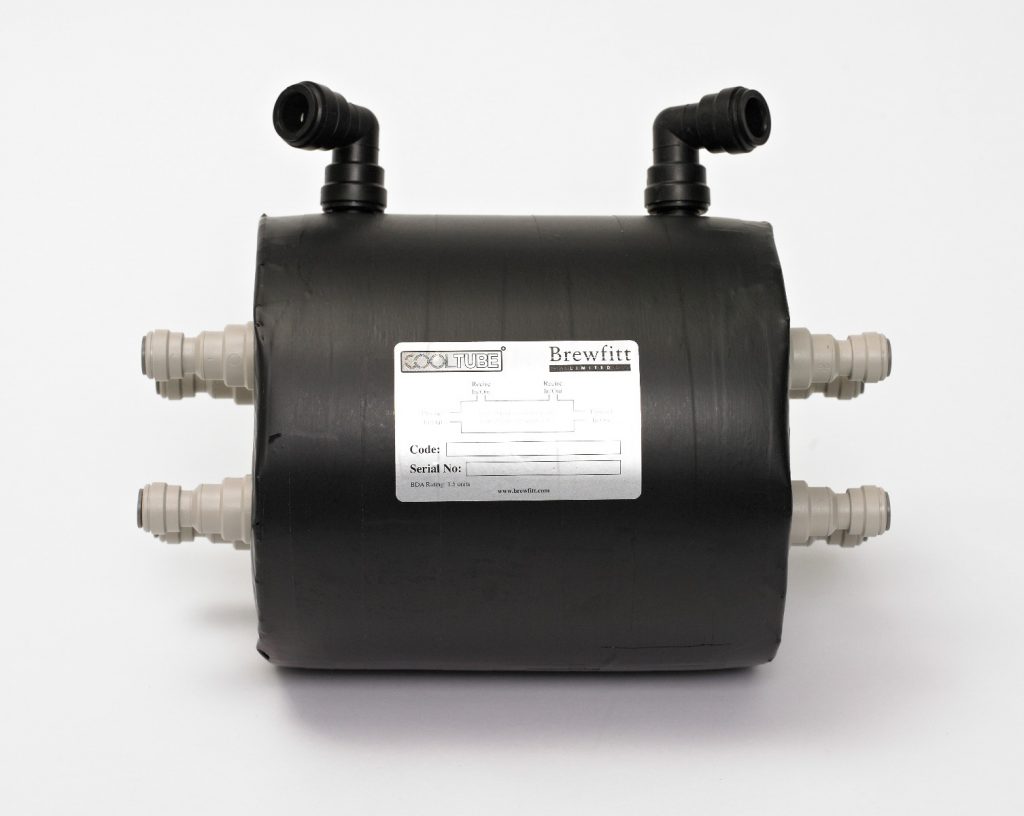

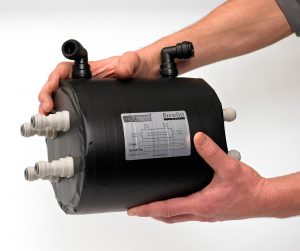

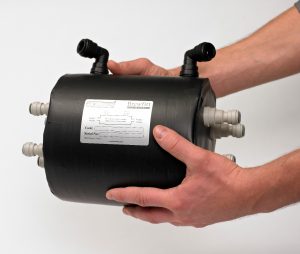

Cooltube 4 Way 10 Line C/W PU Insulation & Fittings
10 line 4 out Cooltube which comes with fittings
The 4 way CoolTube is an amazingly efficient compact heat exchanger that
provides superior heat exchange capabilities to 4 different lines and allows variable
dispense temperatures at the point of dispense with an additional valve. CoolTube is compatible
with any coolant medium, enabling installation and compatibility to all
current dispense systems. This patented technology is set to change
the future of dispensed beverages. PLEASE NOTE: The 10 Line cooltube will be effective for python runs up to 30M only.
Pipe material is 316 grade stainless steel
All other material is 304 grade stainless steel
Key Benefits:
Over 6 times smaller and lighter than standard heat exchangers per line.
Has a superior delta T in comparison to other products.
Has the equivalent of 18 meters of product coil but only holds 40ml of beverage per line.
So compact and lightweight that it doesn’t need fixing into position.
Fits into the most confined spaces including directly under the font, saving valuable space behind the bar.
Has over 4 times more cooling surface area per ml of product than a standard heat exchanger per line.
Provides unique recarbonation properties. Dispensed drinks temperatures can be with 1ºC to 2ºC of the python recirculation temperature.
Consistent dispensed temperatures due to the low volume of product within the CoolTube and its unique heat exchange technology.
Variable dispense temperatures available.
It employs leading edge fluid dynamic technology to provide maximum efficiency in a minimum space, resulting in energy efficiencies and a lower carbon footprint
SKU: 0702565
Final Total
£517.18Ex VAT | £620.62Incl VAT
This item is on back order, we will contact you to provide an estimated delivery date
Warning: Trying to access array offset on false in /srv/htdocs/wp-content/plugins/oxygen/component-framework/components/classes/code-block.class.php(133) : eval()'d code on line 21
Orders placed after 12pm will be dispatched the next working day
Orders placed after 12pm on 22 Dec will be processed on 5 Jan
