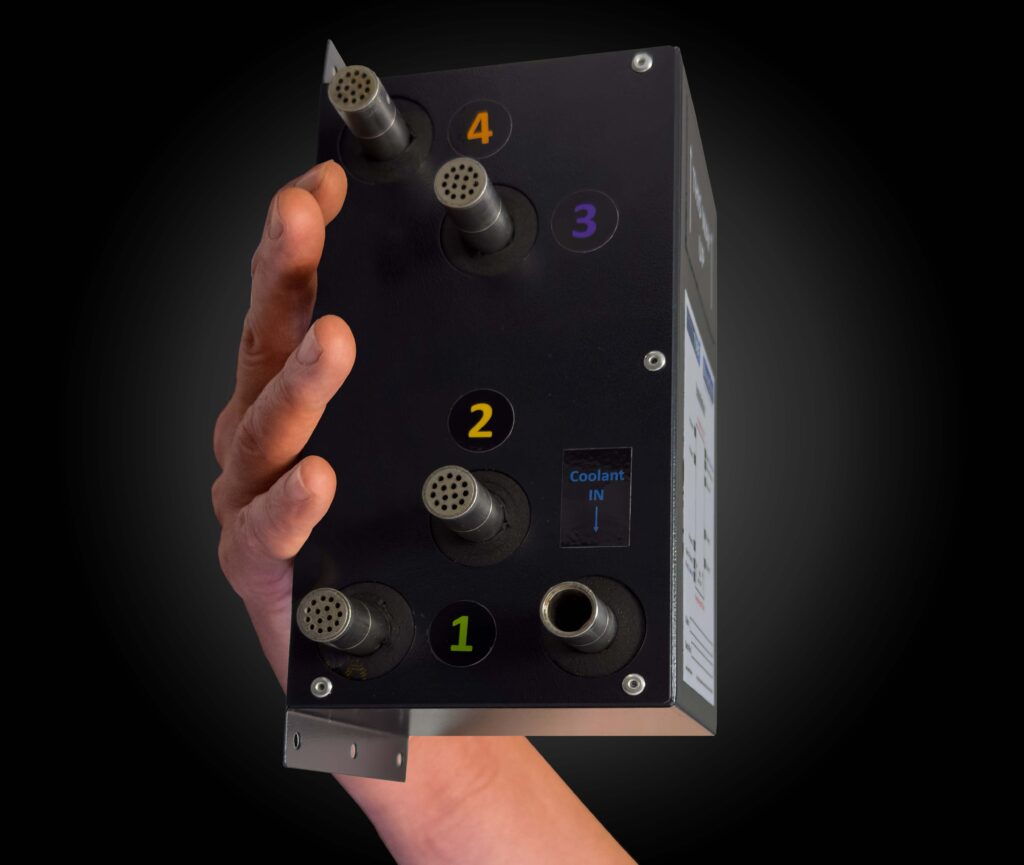

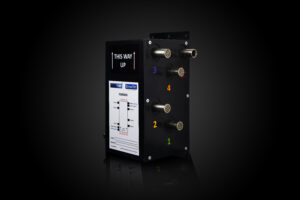

CoolTube Pancake 4 Way 15 Line with fittings

The Pancake CoolTube is a new patented cooling technology that is the future of both primary & secondary cooling.

• Pipe material is 316 grade stainless steel
• All other material is 304 grade stainless steel
• 15 line 4 Way Cooltube which comes with fittings

• Available in a 1, 2 and 4 out configuration.
• Over 12 times smaller and lighter than standard heat exchangers.
• Has a superior delta T in comparison to other products.
• No coils required in the remote coolers using our 2Flow & 4Flow sub zero ice solution.
• Consistent dispense temperature due to the low volume of product within the Pancake and its unique heat exchange technology.
• So compact and lightweight that it doesn’t need fixing into position (comes complete with fixing bracket if required).
• Fits into the most confined spaces including directly under the font, saving valuable space behind the bar.
• Reduced electricity usage and bills including the need for customers to supply plug sockets to install secondary cooling.
• No heat output or noise. Shelf coolers often make back bars very warm due to the heat they output.
• Dispensed drinks temperatures can be within 1°C to 2°C of the python recirculation.
• No maintenance required.
• Less waste when line cleaning due to configuration of Pancake CoolTube that only holds approx 46ml of product. Significantly less than other secondary cooling options.
• Has over 4 times more cooling surface area per ml of product than a standard heat exchanger.
• Variable dispense temperatures available.
• Has the equivalent performance of up to 32m of standard product coil.
• The technology can be adapted to fit inside the font. (And scope for the technology to be combined within the font)
• Heat exchangers can be located in the cellar or cold room.
